Stainless Steel Cable Clamps - Single
Stainless Steel Cable Clamps – Single
Description

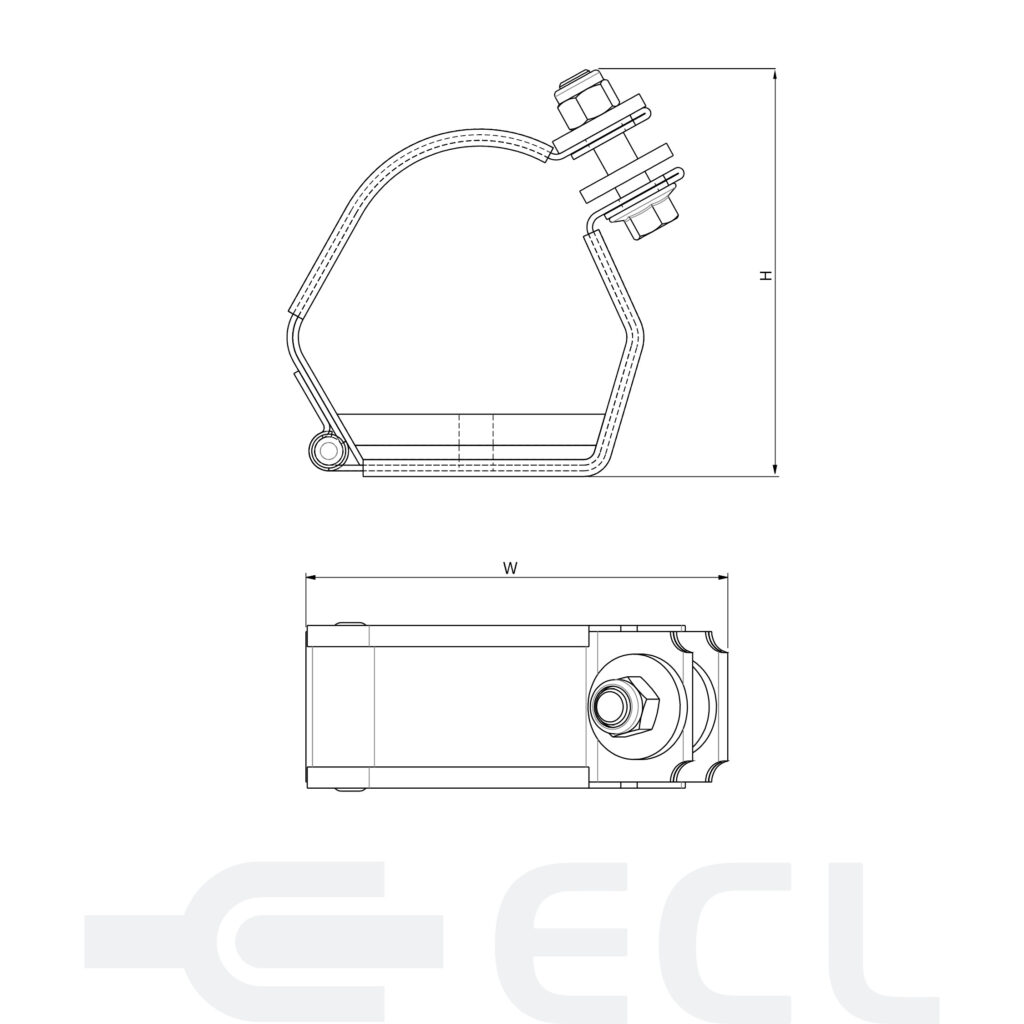

Product Drawing

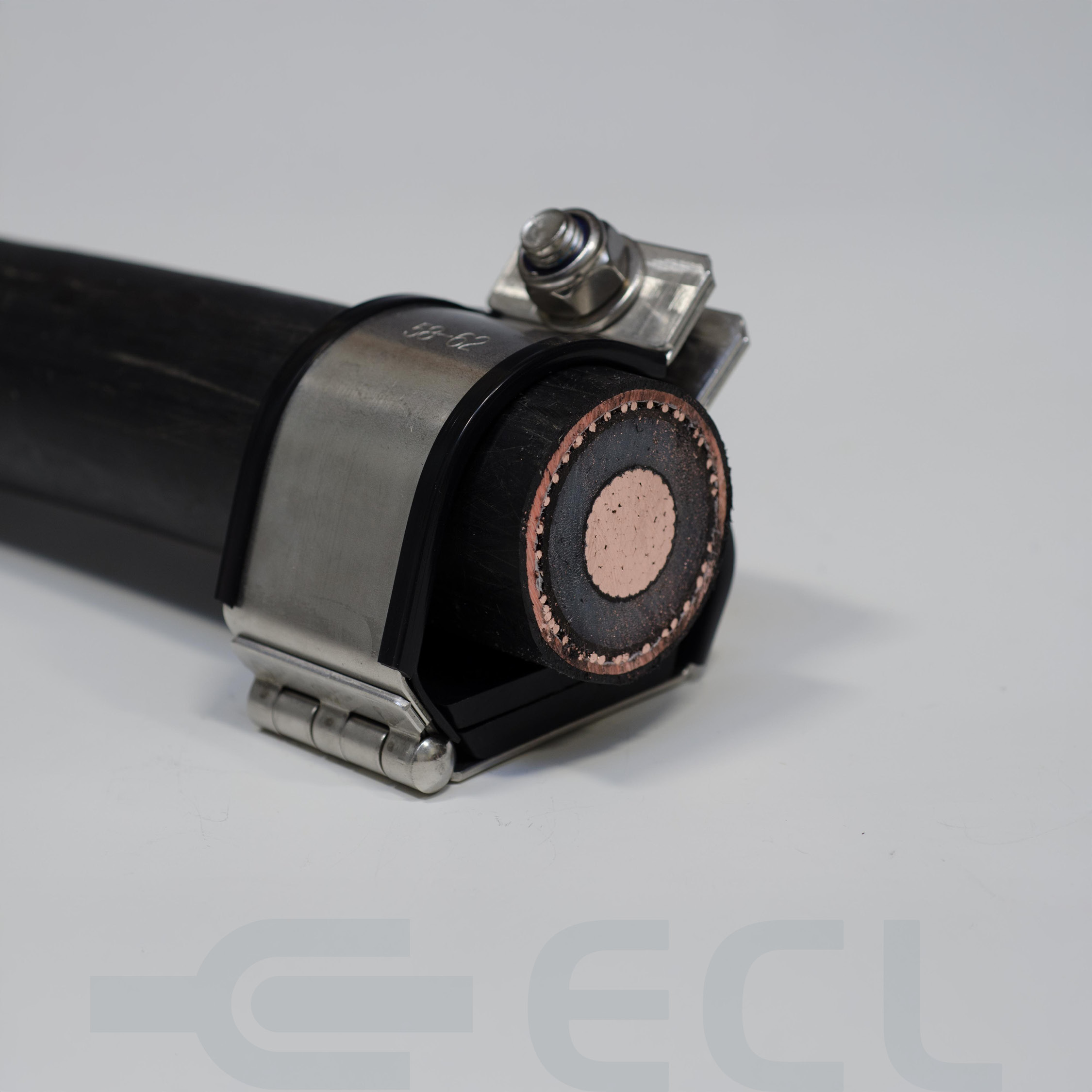

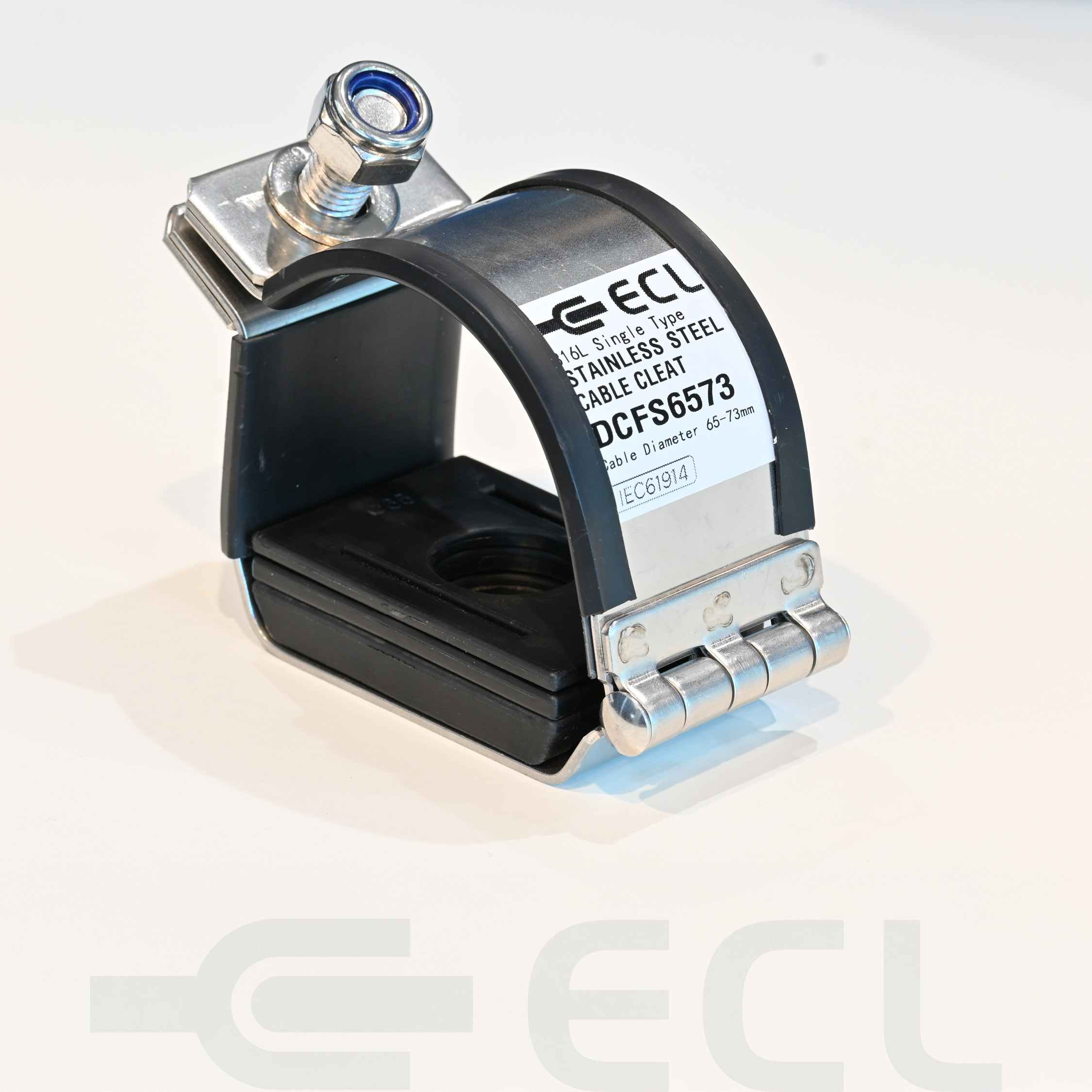

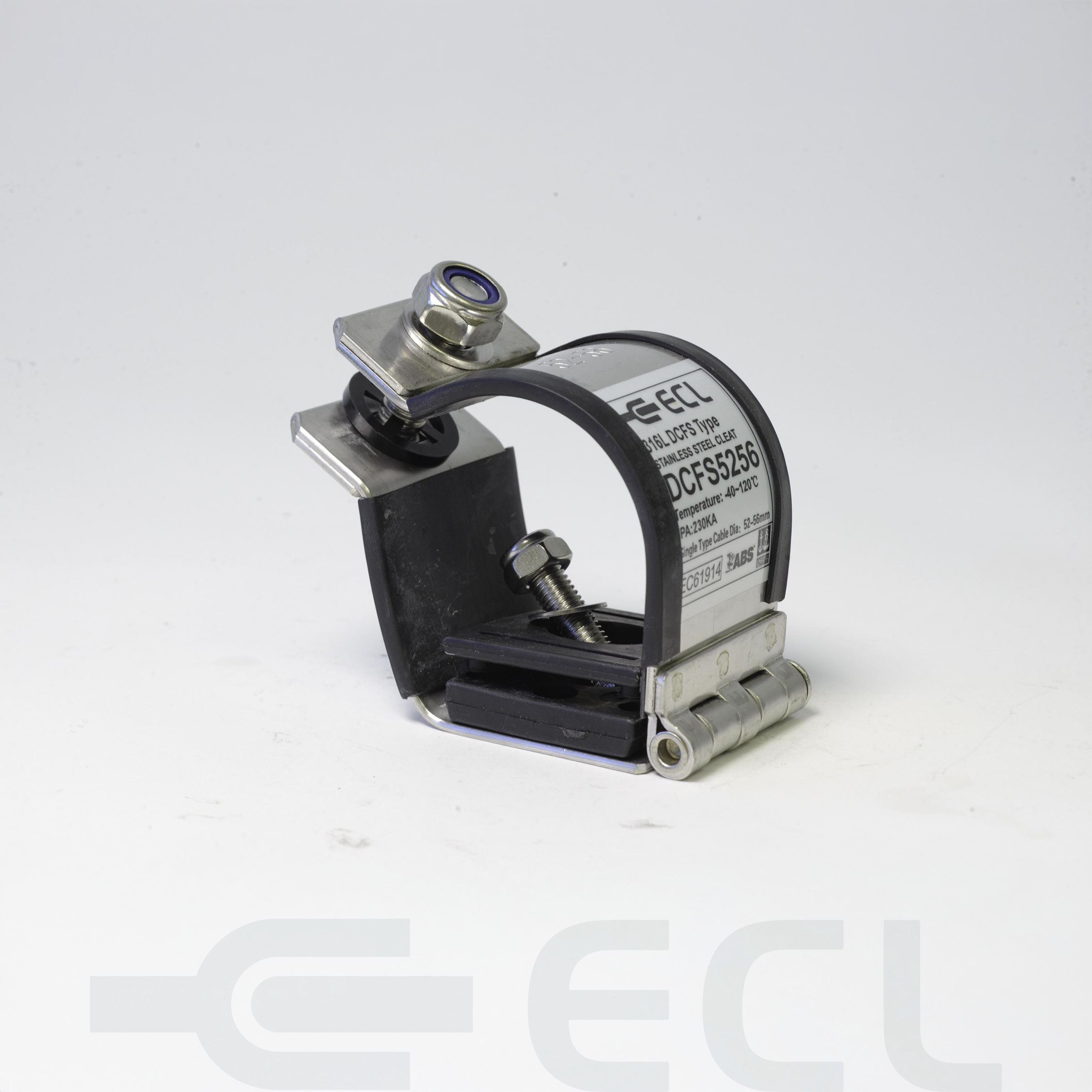

Used for the harshest environments. Manufactured from 316 grade stainless steel and available in multiple sizes ranges for single cable configurations. Supplied with a Low Smoke Halogen Free cable pad to both position the cable and provide padding. Fixed using a single centre mounted bolt. Designed to IEC Standard 61914 and Type Tested and certified to DNV approval.
Features:
- Frame: Marine Grade 316 Stainless Steel
- Clamp Hardware: Stainless Steel 316 Grade bolt and nut
- Cleat Material: Composite
- Clamp Pad: Low Smoke Halogen free
- Mounting Bolt: Stainless Steel, provided with the clamp
- Temp rating: -40°C to +120°C
- Approval: DNV, ABS
| SKU | W | H | Cable Dia mm | Enquiry |
|---|---|---|---|---|
| DCFS4650 | 75 | 84 | 46 - 50 | |
| DCFS4852 | 77 | 86 | 48 - 52 | |
| DCFS5054 | 79 | 87 | 50 - 54 | |
| DCFS5256 | 80 | 88 | 52 - 56 | |
| DCFS5458 | 81 | 90 | 54 - 58 | |
| DCFS5660 | 83 | 91 | 56 - 60 | |
| DCFS5862 | 84 | 93 | 58 - 62 | |
| DCFS6064 | 85 | 95 | 60 - 64 | |
| DCFS6266 | 87 | 96 | 62 - 66 | |
| DCFS6468 | 88 | 98 | 64 - 68 | |
| DCFS6670 | 91 | 100 | 66 - 70 | |
| DCFS6872 | 94 | 101 | 68 - 72 | |
| DCFS7074 | 95 | 103 | 70 - 74 | |
| DCFS7276 | 101 | 105 | 72 - 76 | |
| DCFS7478 | 104 | 107 | 74 - 78 | |
| DCFS7680 | 105 | 109 | 76 - 80 | |
| DCFS7882 | 107 | 110 | 78 - 82 | |
| DCFS8084 | 110 | 111 | 80 - 84 | |
| DCFS8286 | 111 | 113 | 82 - 86 | |
| DCFS8488 | 113 | 115 | 84 - 88 | |
| DCFS8690 | 116 | 116 | 86 - 90 | |
| DCFS8892 | 117 | 118 | 88 - 92 | |
| DCFS9094 | 119 | 120 | 90 - 94 | |
| DCFS9296 | 121 | 122 | 92 - 96 | |
| DCFS94106 | 133 | 135 | 94 - 106 | |
| DCFS3640 | 65 | 74 | 36 - 40 | |
| DCFS3842 | 66 | 76 | 38 - 42 | |
| DCFS4044 | 68 | 79 | 40 - 44 | |
| DCFS4246 | 71 | 81 | 42 - 46 | |
| DCFS4448 | 73 | 82 | 44 - 48 | |
| DCFS3236 | 60 | 73 | 32 - 36 | |
| DCFS3438 | 63 | 74 | 34 - 38 | |
| DCFS3034 | 58 | 71 | 30 - 34 | |
| DCFS2832 | 56 | 69 | 28 - 32 |
