Dutchclamp Cable Clamps – Triple Types
Description

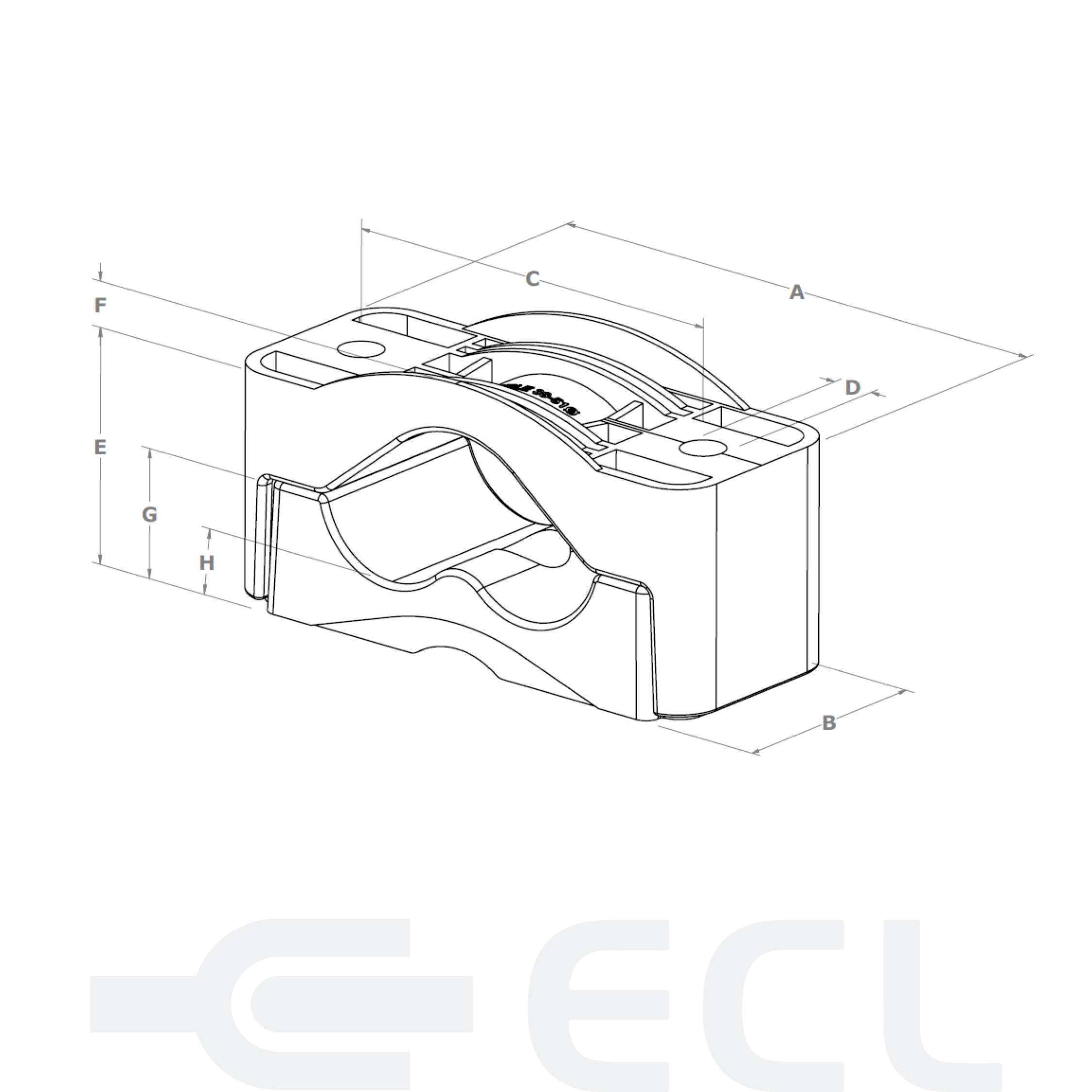

Product Drawing

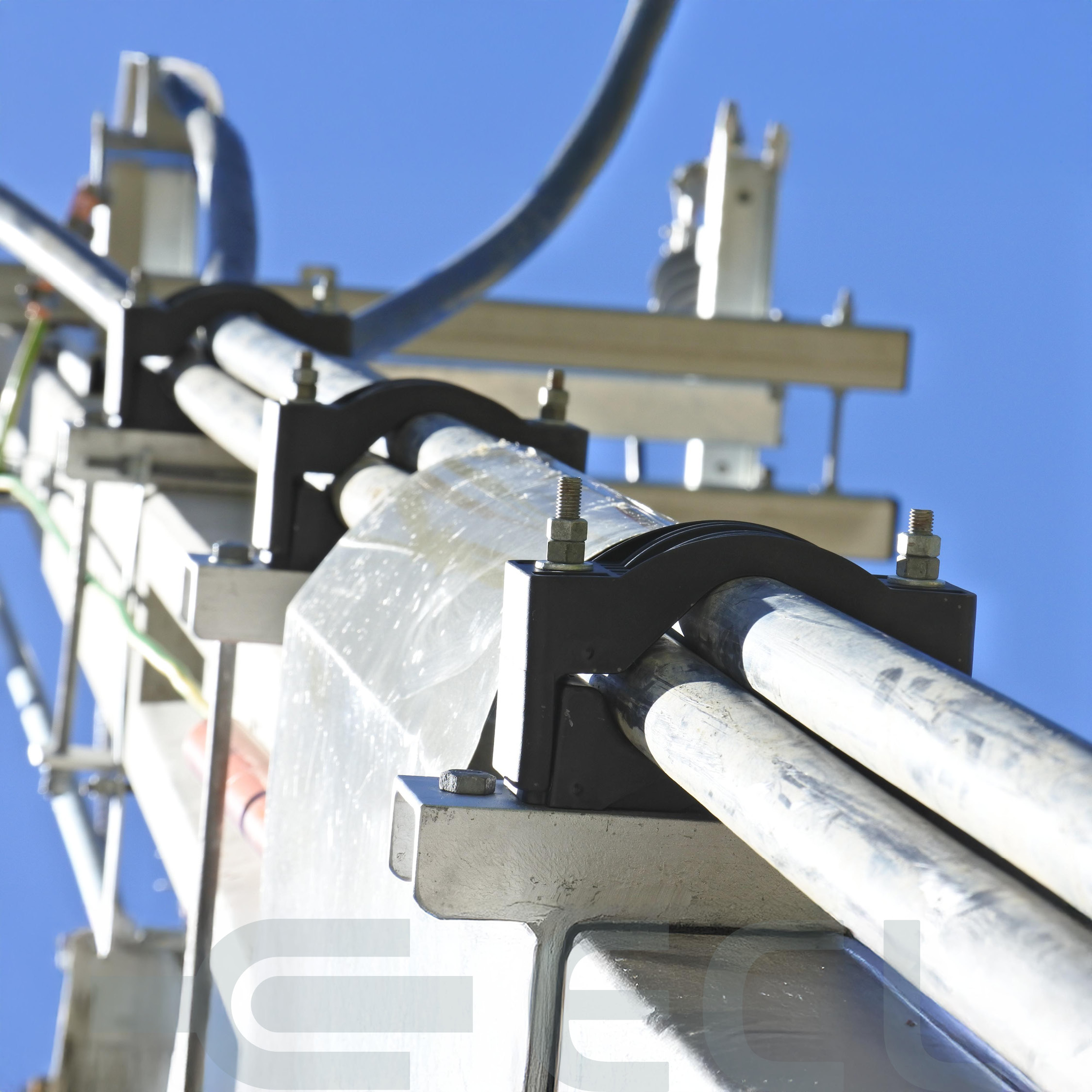

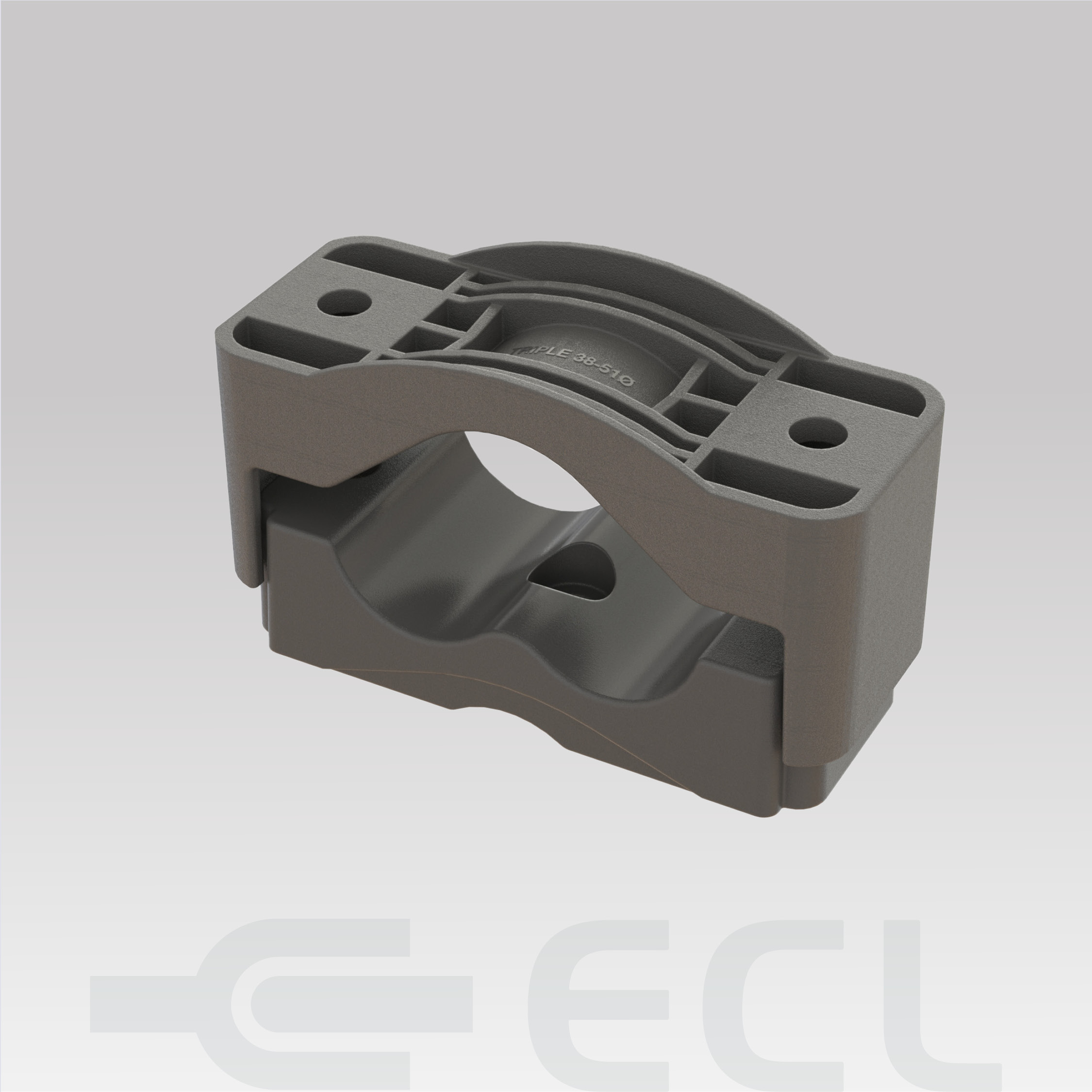

Dutchclamp Triple Cable Clamps are specially designed for short circuit resistant fastening of cables in trefoil applications. Triple types are available in 6 models and suitable for cables with a diameter from 27mm to 150mm.
Features:
- Resistant to short-circuit currents up to 150Ka
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, and acids
- Self-extinguishing V-0 (UL94), Halogen free
- Temperature range from -40°C to 125°C. (225°C momentarily)
- Coloured black
- No magnetism/conductivity
- Custom mounting available
- Fastening materials can be supplied to size
- No oxidation/corrosion
- No sharp angles
- Recyclable
- Stackable
- Lifetime warranty
- Certified in accordance with NEN-EN-IEC 61914:2009
Click here for Clamp Inserts which are compatible with Triple Types Dutchclamps.
| SKU | Cable Dia mm | A | B | C | D | E | F | G | H | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| DCLTR2738 | 3 x 27 - 38 | 180 | 75 | 125 | 15.5 | 65 | 12 | 35 | 16.5 | |
| DCLTR3851 | 3 x 38 - 51 | 195 | 80 | 145 | 15.5 | 84 | 16 | 45 | 20 | |
| DCLTR5169 | 3 x 51 - 69 | 220 | 85 | 170 | 15.5 | 109 | 21 | 58 | 26 | |
| DCLTR6990 | 3 x 69 - 90 | 252 | 90 | 215 | 15.5 | 135 | 29 | 72 | 30 | |
| DCLTR90118 | 3 x 90 - 118 | 321 | 100 | 270 | 15.5 | 180 | 27 | 89 | 33 | |
| DCLTR118150 | 3 x 118 - 150 | 400 | 110 | 340 | 15.5 | 211 | 37 | 110 | 75 |
