Dutchclamp Cable Clamps - SE Types
Dutchclamp Cable Clamps – SE Type
Description

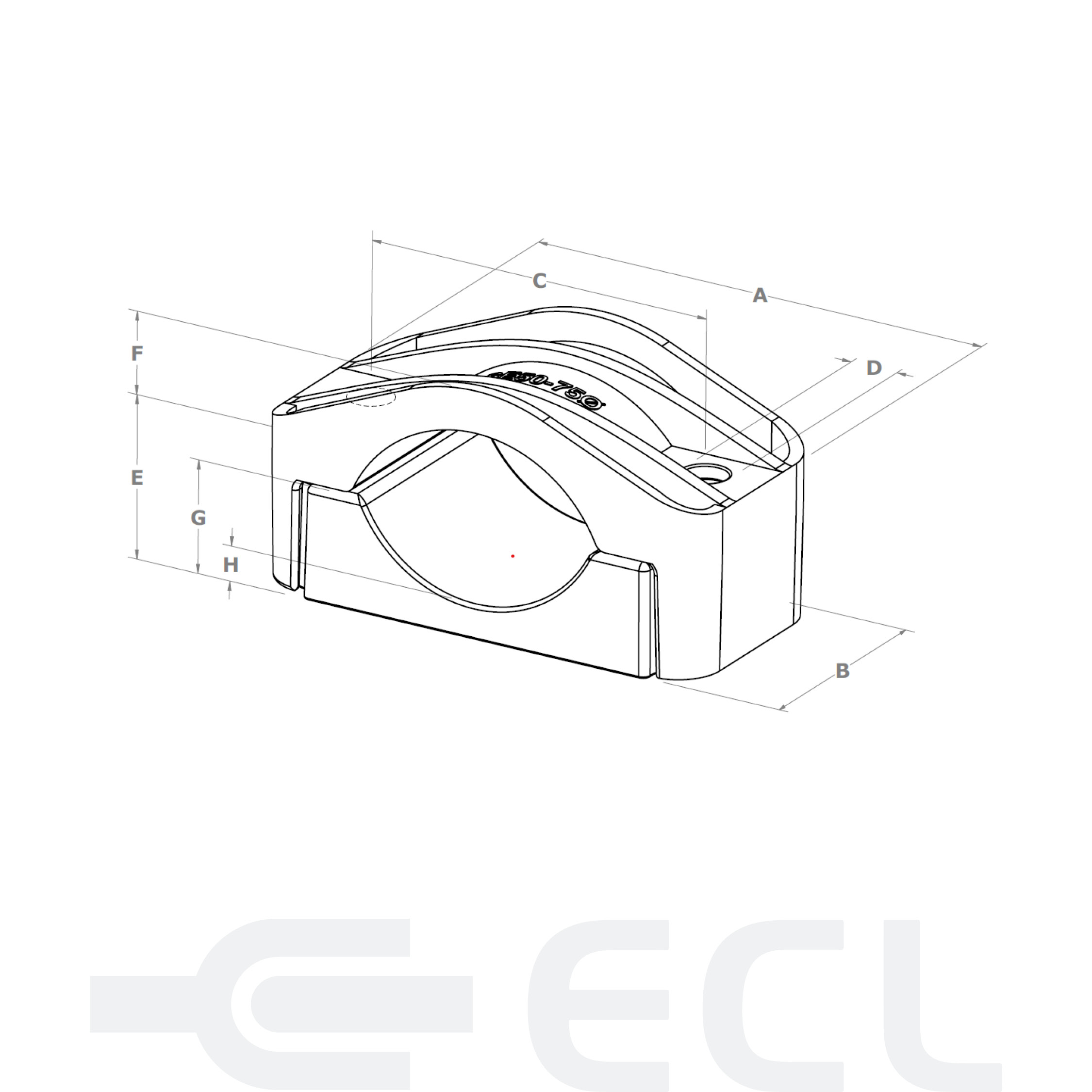

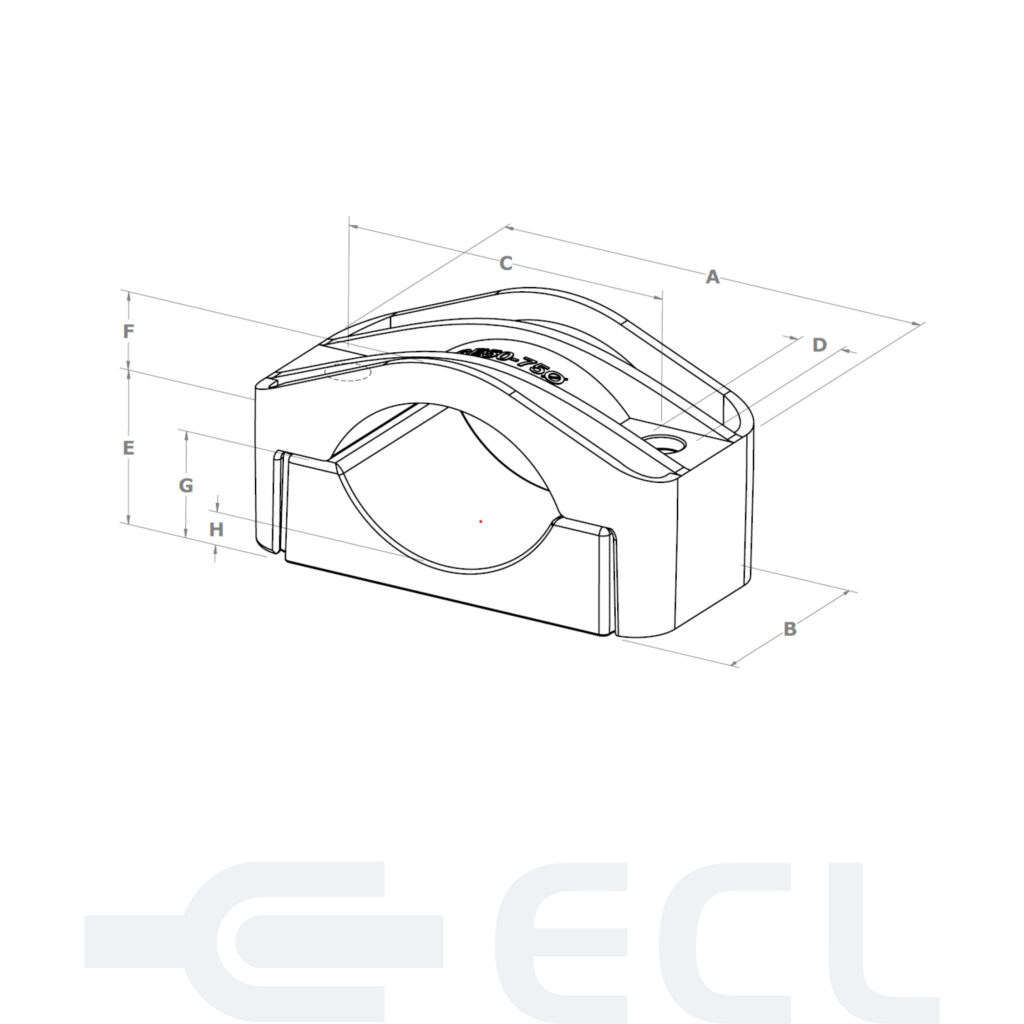

Product Drawing

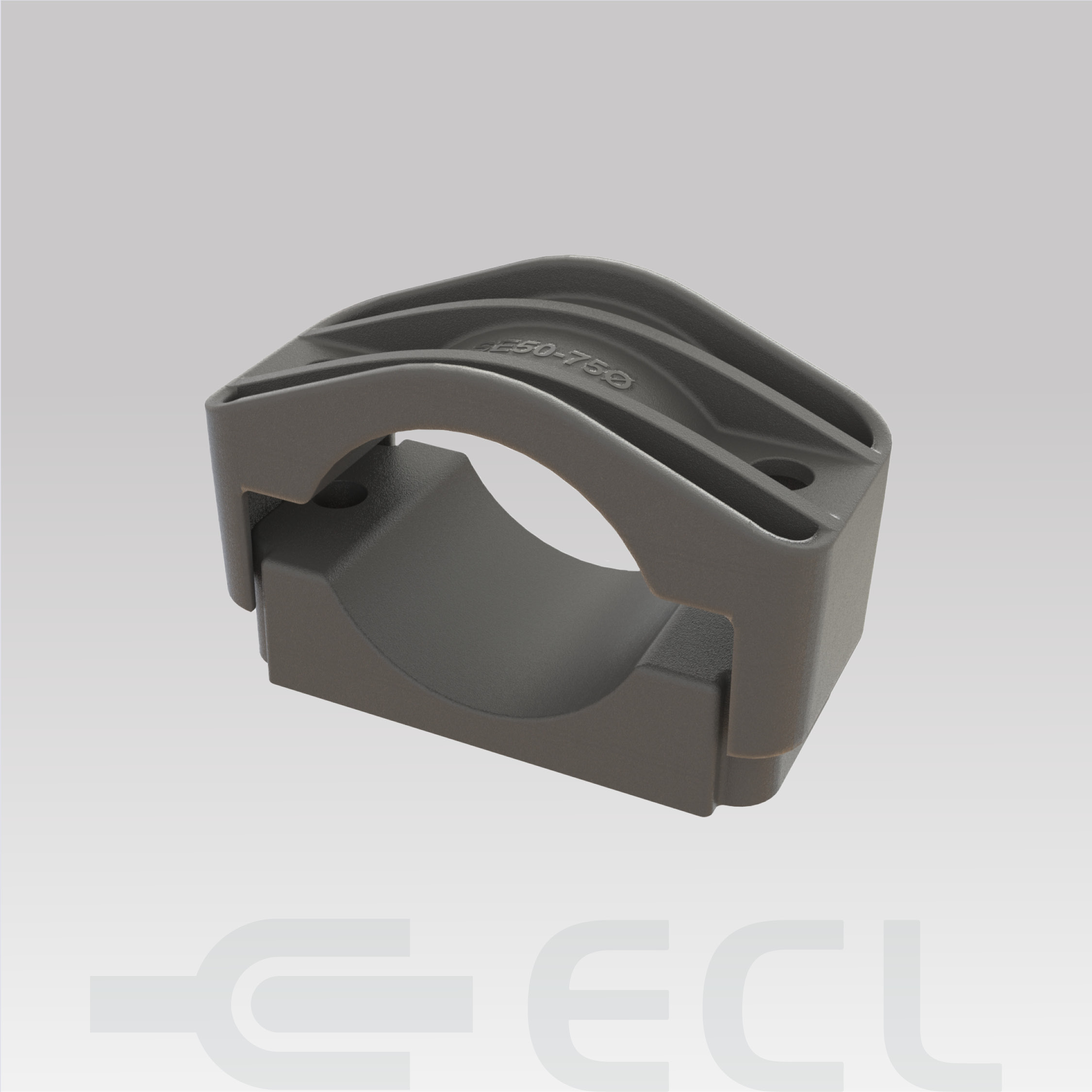

Dutchclamp SE Cable Clamps are specially designed for short circuit resistant fastening of single or multi-core medium and high voltage cables. SE types are available in 7 models and suitable for cables with a diameter from 15mm to 170mm.
Features:
- Resistant to short-circuit currents up to 202Ka
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, and acids
- Self-extinguishing V-0 (UL94), Halogen free
- Temperature range from -40°C to 125°C. (225°C momentarily)
- Coloured black
- No magnetism/conductivity
- Custom mounting available
- Fastening materials can be supplied to size
- No oxidation/corrosion
- No sharp angles
- Recyclable
- Lifetime warranty
- Certified in accordance with NEN-EN-IEC 61914:2009
Click here for Clamp Inserts which are compatible with SE Types Dutchclamps.
| SKU | Cable Dia mm | A | B | C | D | E | F | G | H | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| DCLSE1526 | 15 - 26 | 77 | 45 | 50 | 10 | 26 - 42 | 4 | 17 | 8 | |
| DCLSE2638 | 26 - 38 | 92 | 60 | 60 | 12 | 33 - 49 | 7 | 18 | 7 | |
| DCLSE3652 | 36 - 52 | 105 | 60 | 75 | 12 | 39 - 55 | 15 | 23 | 8 | |
| DCLSE5075 | 50 - 75 | 126 | 60 | 95 | 12 | 46 - 71 | 22 | 30 | 9 | |
| DCLSE75100 | 75 - 100 | 200 | 80 | 150 | 15 | 70 - 95 | 32 | 45 | 10 | |
| DCLSE100135 | 100 - 135 | 225 | 85 | 175 | 15 | 85 - 120 | 43 | 58 | 10 | |
| DCLSE135170 | 135 - 170 | 260 | 90 | 210 | 15 | 133 - 169 | 62 | 90 | 25 |
